What is the Pillow Plates and Dimple Plates?

What are the Pillow Plates?

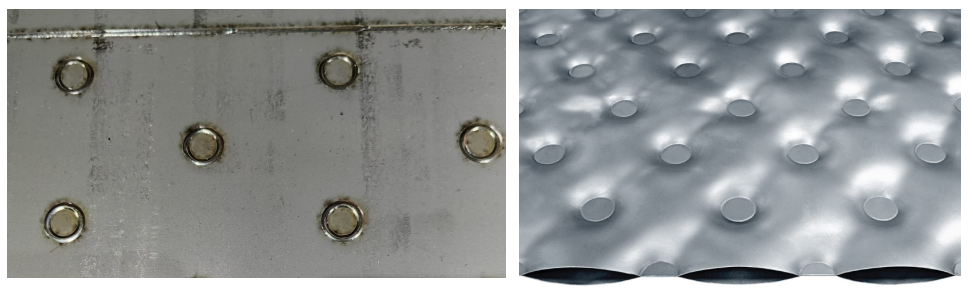

Pillow Plates: two stainless steel sheets are welded by a laser welding machine to get the designed flow channel and small points.  A laser welding machine seals their edges. Inside, there are lots of little connected rooms. These rooms make the plate look like a pillow. These rooms are like big roads for liquids. The liquids can move around and mix in these rooms. This makes the liquids spread out more evenly. Pillow plates are perfect for places where there's a lot of liquid moving, and the liquid is under high pressure, like in a very big petrochemical refinery. In the refinery, the pillow plate helps move heat around really well.

But some people would like to call the pillow plates dimple plates. Actually, they are different.

Different Structures:Dimple Plate: Think of a flat piece of metal.It has little dents on it. These dents look like small craters, kind of like the ones you might see on the moon. Some of the dents are round like half balls (hemispherical), and some are a bit oval shaped (ellipsoidal). People press these dents into the metal surface very carefully.

Different Performances:Dimple Plate:The dimple plate does okay when the fluid doesn't move very fast and the pressure isn't too strong. It's easy to make, so it's a cheap choice for jobs where you don't need a really amazing heat exchange. But if you put it in a big, busy factory where lots of fluid is flowing fast and you need to control the temperature very carefully, it might have problems. It's like a beginner trying to do a really hard job on a big stage. The dimple plate just can't handle a lot of fluid or move heat as well as it needs to in those tough situations.Pillow Plate:The pillow plate is really great at handling high pressures and lots of fluid. It's like the best dancer in a high performance heat exchange show. The little rooms inside the pillow plate make the fluids move in a way that makes heat move around perfectly. This means it can control the temperature just right. But because it's so fancy and takes a long time to make carefully, it costs a lot. So, if you don't have much money or you only need a small scale heat exchange, the pillow plate might be too expensive for you.

But the pillow plate also looks like a dimple, so now many people also say that the pillow plate is a dimple plate. No matter what the name is, it is most important to clarify your usage requirements. Anhui Yingchuang Laser Technology Co., Ltd. is a factory specializing in the production of pillow plates. If you have any questions or needs about pillow plates, please feel free to contact them.
