Double Embossed Dimple Jacket

Stainless Steel Laser Welded Single Embossed/Double Embossed Cooling/Heating Pillow/Dimple Jacket

What is a pillow plate jacket/Dimple jacket?

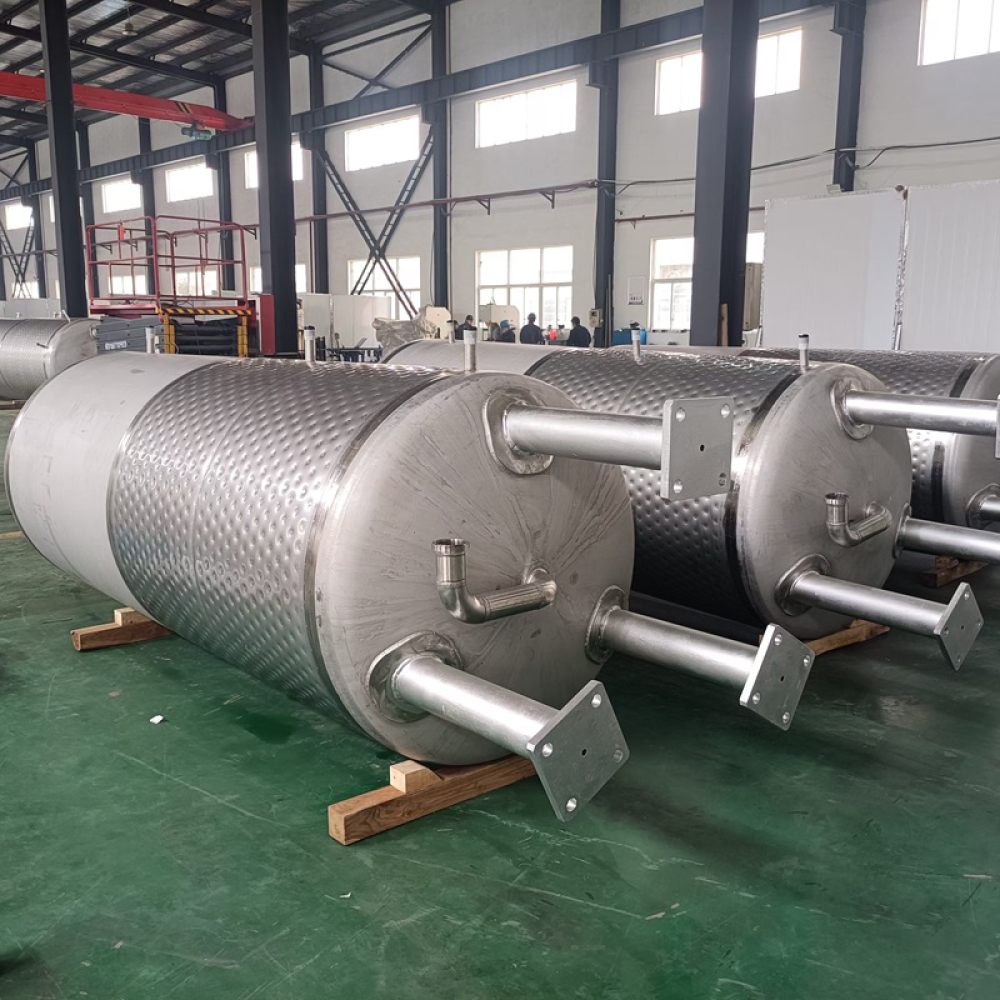

A pillow plate jacket is a heat transfer device. Two welded stainless steel or titanium plates are bent to a specific curvature through a mold. Subsequently, by inflating via the inlet and outlet pipes, the curved plates are deformed, creating a cavity for the heat transfer medium. Typically, the jacket is wrapped around a container or tank to facilitate heat transfer between the heating or cooling medium flowing through the pillow plate jacket and the substances inside the container.

Dimple Jacket Video

Pillow Plate/Dimple Jacket Type

Double Embossed Jacket

Single Embossed Jacket

Different Pillow Plate/Dimple Jackets

Pillow Plate/Dimple Jacket Specification

All our pillow plates Jacket are customized.

For any size and shape, please feel free to contact our Sales.

Pillow Plate/Dimple Jacket Cooling and Heating Medium

For heating, it could be steam, hot water, or thermal oil and so on;

For cooling, it could be chilled water, brine, or a refrigerant and so on.

Pillow Plate Jacket Advantages

1. High heat transfer efficiency: The unique structure of the pillow plate jacket provides a large heat transfer area and efficient heat exchange between the medium and the container.

2. Good mechanical strength: Made of stainless steel or titanium, it has high strength and can withstand certain pressures and impacts.

3. Customizable design: The shape and size of the pillow plate jacket can be customized according to the specific needs of different containers and applications.

4. Easy installation and maintenance: The pillow plate jacket can be easily installed around the container and is convenient for maintenance and replacement.

5. Durability: With good corrosion resistance and long service life, it can operate stably in various environments.

6. Versatility: It can be used for heating and cooling in different industries and applications.

Pillow Plate Jacket Application

Industrial Processes

1.In the chemical industry, pillow plate jackets find application in chemical reactors to ensure precise temperature control during chemical reactions. They assist in heating or cooling the reaction mixtures, thereby guaranteeing optimal reaction conditions and product quality.

2.In pharmaceutical manufacturing, these jackets can be utilized for heating or cooling in processes such as crystallization, drying, and fermentation. This helps maintain the required temperature at different stages of drug production.

3.In food processing, for applications like pasteurization, sterilization, and cooking, pillow plate jackets offer efficient heat transfer. They can be employed to heat or cool food products rapidly and evenly, ensuring food safety and quality.

Storage and Transportation

 1.For tank heating and cooling, pillow plate jackets are used to keep the temperature of stored liquids in tanks stable. For instance, in the storage of chemicals, oils, and gases, they can prevent freezing or overheating, thus ensuring the stability and safety of the stored materials.

2.In transportation, pillow plate jackets can be used in tanker trucks and rail cars transporting temperature-sensitive materials to maintain the required temperature during transit.

Pillow Plates/Dimple Jacket Production Process
