Plate Type Condenser

Pillow Plate Condenser /Plate Type Condenser

Stainless Steel Laser Welded Pillow Plate Heat Exchanger

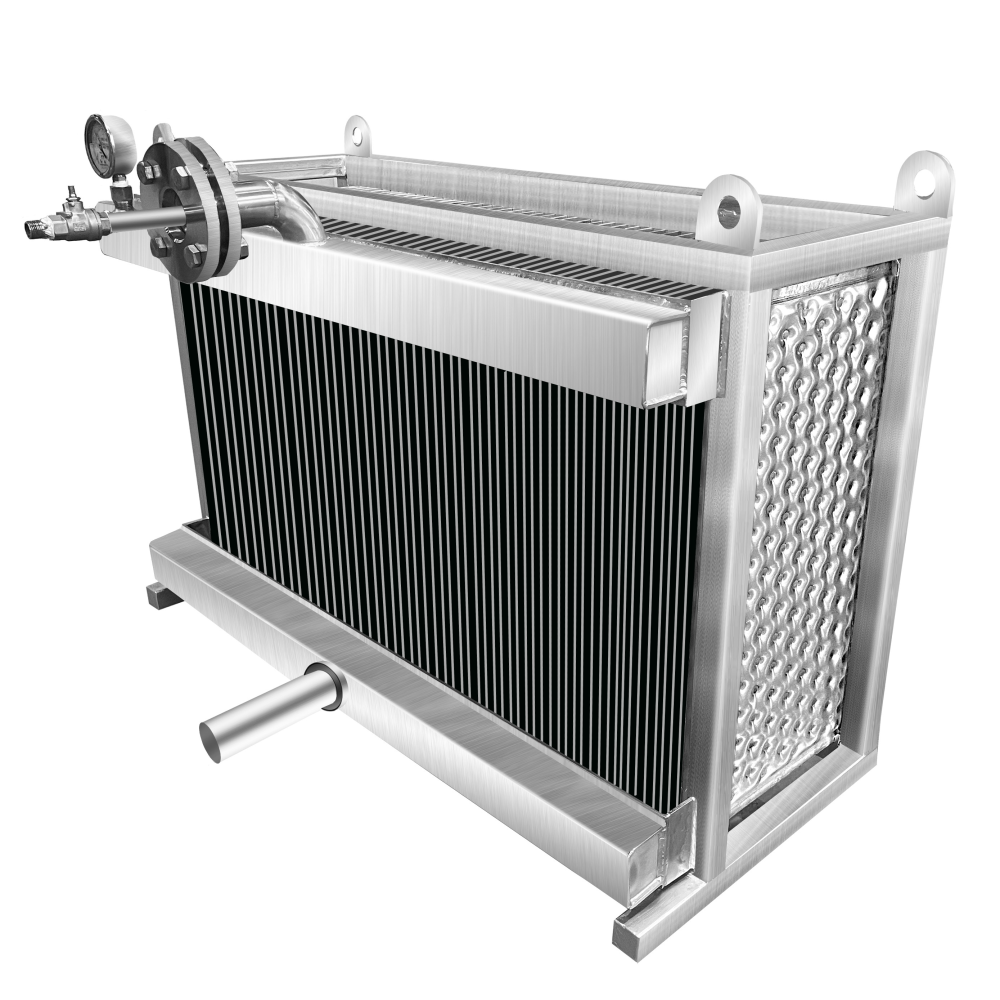

What is a Plate Condenser?

The plate condenser is a kind of pillow plate heat exchanger. A pillow plate heat exchanger is assembled from a certain number of double embossed pillow plates.

Pillow Plate Heat Exchanger Video

Pillow Plate/Dimple Plate Raw Material:

Stainless Steel Grade: 430,304,316L,310S,2205,2507,904L.....

Ti Material

Pillow Plate Heat Exchanger Specification

All our pillow plate heat exchanger are customized.

For any size, please feel free to contact our Sales.

Our normal double embossed plate thickness are as below, 0.8+0.8mm,1.0+1.0mm,1.2+1.2mm,1.5+1.5mm,2.0+2.0mm

Pillow Plate Heat Exchanger Cooling and Heating Medium

For heating, it could be steam, hot water, or thermal oil and so on;

For cooling, it could be chilled water, brine, or a refrigerant and so on.

Pillow Plate Heat Exchanger Advantages

High Heat Transfer Efficiency:

- Pillow plate's unique design offers large area. Corrugated plates boost turbulence,

enhancing heat transfer.

Durability and Reliability:

- Made of quality stainless steel or titanium. Welded, leak-proof, withstands harshness,

cuts downtime.

Compact Design:

- Compact footprint suits space-limited apps. Modular for easy install and maintenance.

Versatility:

- Used in heating, cooling, etc. Fits chemical, pharma, food, power gen industries.

Easy Cleaning and Maintenance:

- Smooth plates, easy clean, less fouling. Components disassemble easily, reduce downtime.

Energy Savings:

- Efficient transfer cuts heating/cooling. Integrates with renewables/energy recovery,

saves energy.

Pillow Plate Heat Exchanger Application

Industrial Processes:

- In chem, for reactor heating/cooling. Pharma uses it for ster., dry., cryst. Food &

bev for pasteur., bev cool., oil heat., ensuring quality & safety.

Energy Industries:

- In power plants, recovers waste heat, cools turbines. In renewables, transfers heat,

boosts efficiency, aids energy utilization.

HVAC and Refrigeration:

- For HVAC's air cond., heat recov., dehumid. In refrig., cools cond. & evap. Compact,

efficient, great for space-limited scenarios.

Marine and Offshore:

- Cools marine/offshore equip., endures harsh env. Also heats/cools ballast water,

stops invasive species spread.

Other Applications:

- Cools data center servers. In autos, cools engine & fluids. Compact, durable, crucial

for maintaining equipment and vehicle ops.

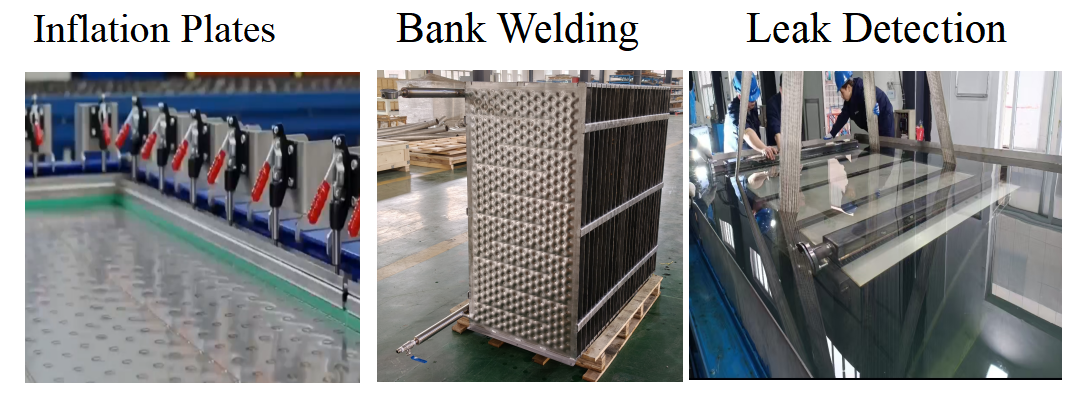

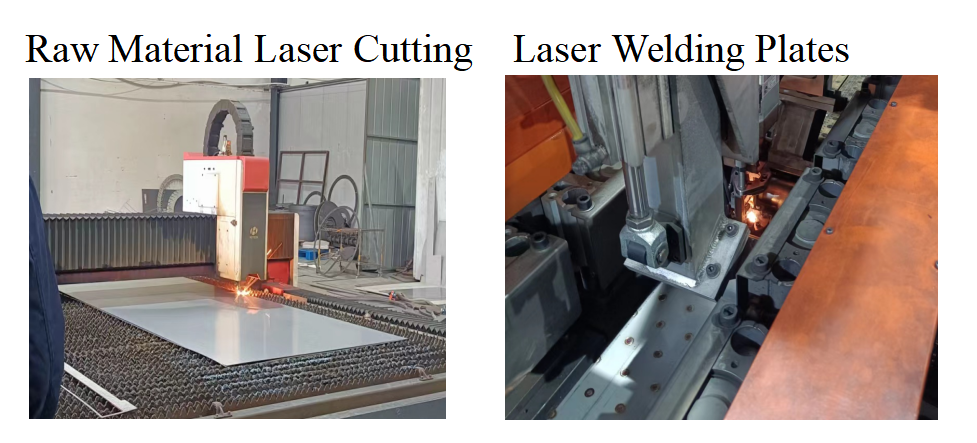

Pillow Plates Production Process

Good Comments from Customers

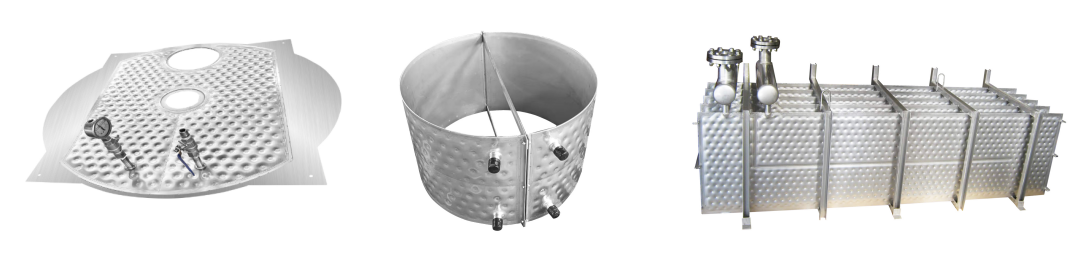

Recommended Products
