Bulk Solid Heat Exchanger

Pillow Plate Bulk Solid Heat Exchangers for Granular Powder Solid Thermal Treatment in Chemical Food Metallurgical Energy Sectors

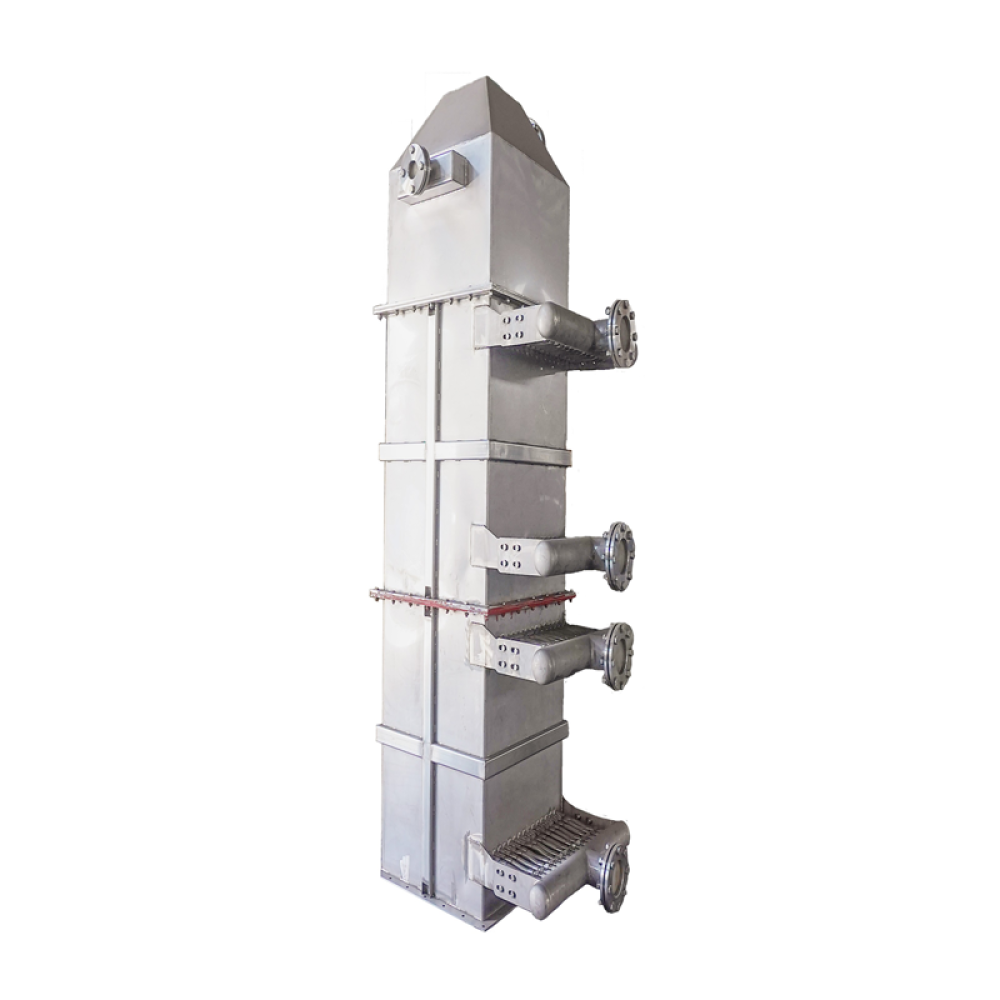

What is a Bulk Solid Heat Exchanger?

This heat exchanger is specifically designed to cool solid or powdered materials. The materials enter from the top and then reach the area of the bank made of pillow plates. The bank has a large touch area with the materials, resulting in a large heat exchange area and high heat exchange efficiency. The materials can flow uniformly and completely between the plates. The cooling water enters from the lower part of the heat exchanger to achieve the heat exchange between hot and cold.

Pillow Plate/Dimple Plate Raw Material:

Stainless Steel Grade: 430,304,316L,310S,2205,2507,904L.....

Ti Material

Bulk Solid Heat Exchanger Specification

All our bulk solid heat exchanger are customized.

For any size, please feel free to contact our Sales.

Our normal double embossed pillow plate thickness are as below, 0.8+0.8mm,1.0+1.0mm,1.2+1.2mm,1.5+1.5mm,2.0+2.0mm.

Bulk Solid Heat Exchanger Cooling Medium

For cooling, it could be chilled water or a refrigerant and so on.

Bulk Solid Heat Exchanger Advantages:

1. Efficient Heat Exch. Pillow plates give large contact area. Stable transfer in fertilizer & food proc., reaching temp fast, no local heat.

2. Energy-saving. Better than trad. systems. Accurate heat transfer, less waste. Big energy savings in chem. prod.

3. Wide Appl. Used in chem., food, metall., energy inds. for various tasks. Versatile solution for diverse industrial needs.

4. Reliable Op. Made & tested strictly. From design to prod., quality assured. Stable, few failures, reliable for ind. prod.

5. Easy Maint. Quick-opening door. Easy plate cleaning after handling solids. No complex tools/skills, low cost.

6. Space-eff. Vertical install. Compact, expandable mod. design. Saves space, adapts to capacity changes.

7. Env. Prot. Enclosed silo, low gas use. Low emissions in chem. & energy. Helps overall energy save & emission red.

Bulk Solid Heat Exchanger Application

1. Chemical Industry:    - Fertilizer Prod.: Cools urea, NPK, etc. in fertilizer making. Hot granules enter exchanger, cool with medium, reach proper storage temp, ensuring quality.    - Inorg. Salt Proc.: Regulates temp of carbonates, etc. Controls heat in crystallization, like borates, enhancing product purity and quality. 2. Food Industry:    - Ingredient Proc.: Cools solid food like hot sugar granules, preventing sticking. For coffee, maintains flavor in roasting/extraction cooling, optimal temp control.    - Oilseed Proc.: Adjusts seed temp of soybeans, etc. before pressing. In soybean oil extraction, controls temp, boosts oil yield and quality. 3. Metallurgical Industry:    - Foundry Sand Cooling: Cools hot foundry sand after use. Sand enters exchanger, exchanges heat, reduces temp, improves reuse rate and casting quality. 4. Energy Industry:    - Biodiesel Prod.: Heats plant seeds like rapeseed for biodiesel. With exchanger, heats to right temp, improves biodiesel yield and quality.

Pillow Plates Production Process

Bulk Solid Heat Exchanger Data Sheet

Submit the bulk solid heat exchanger data sheet to get solution.
