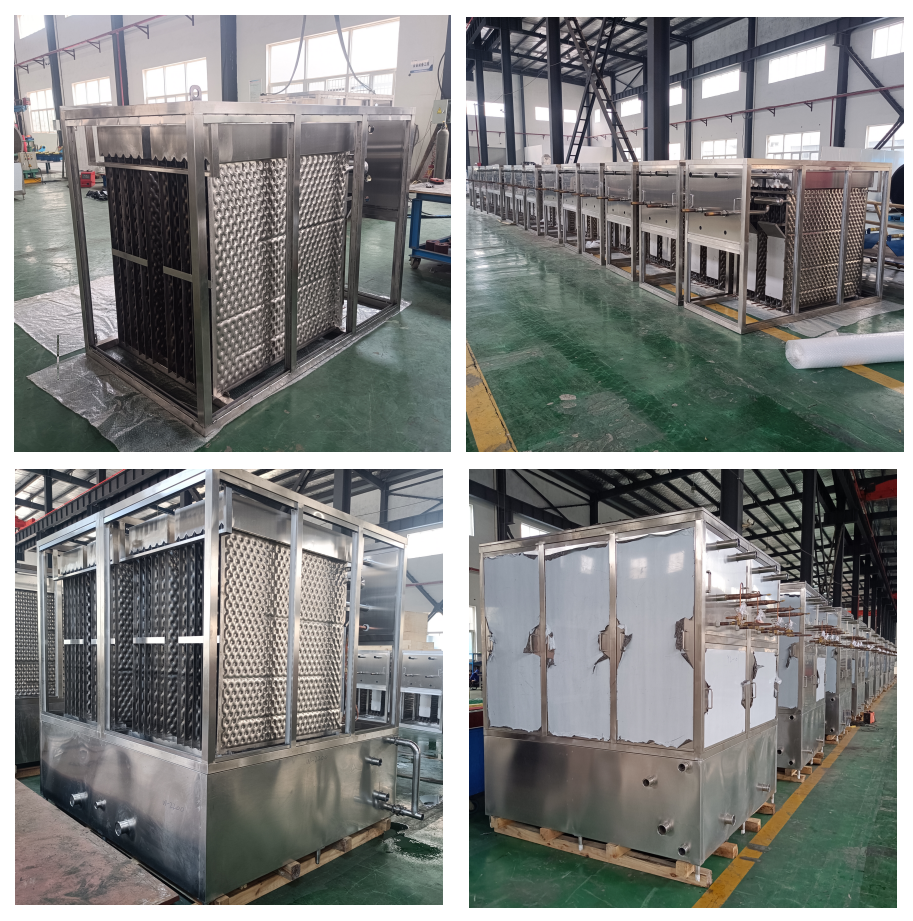

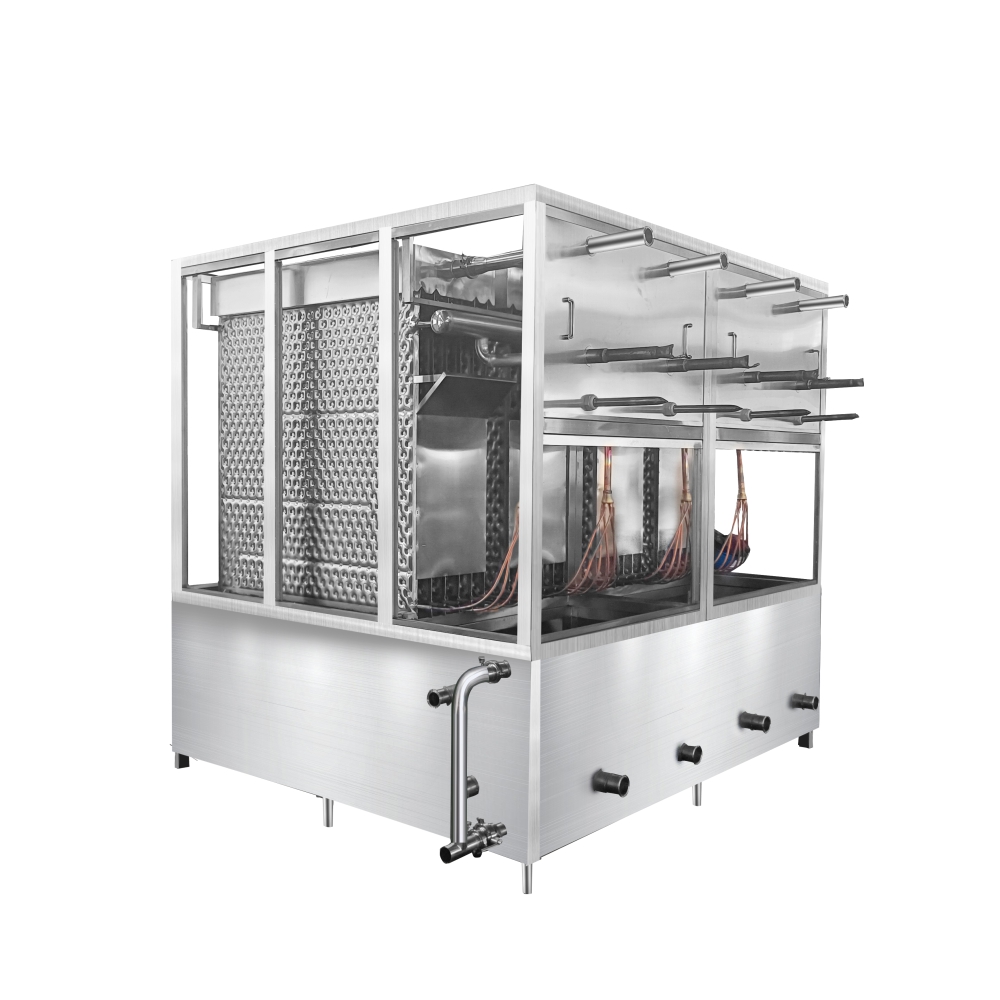

Falling Film Chiller Evaporator

Falling Film Chiller Evaporator

What is a Falling Film Chiller Evaporator

Falling Film Chiller Evaporator is a key component in heat exchange systems. It features a pillow shaped plate design. In this evaporator, the liquid refrigerant forms a falling film on the plates. This allows for efficient heat transfer as the refrigerant evaporates, absorbing heat from the surrounding medium. The pillow plate structure provides a large surface area and good fluid distribution, enhancing the overall cooling performance.

Falling Film Chiller Evaporator Raw Material:

Stainless Steel Grade: 304,316L....

Falling Film Chiller Evaporator Specification

All our falling film chiller evaporators are customized.

For any size, please feel free to contact our Sales.

Our normal double embossed plate thickness are as below, 0.8+0.8mm,1.0+1.0mm,1.2+1.2mm,1.5+1.5mm,2.0+2.0mm

Falling Film Chiller Evaporator Cooling Medium

For cooling, it could be refrigerants and so on.

Falling Film Chiller Evaporator Advantages

1. High heat-transfer efficiency. Pillow plate design enlarges area. Falling film spreads fluid evenly. Ideal for space-limited applications. 2. Low pressure drop. Unique pillow plate structure reduces resistance. Saves energy and extends pump lifespan. 3. Excellent thermal performance. The combination enables quick heat absorption and good conduction. Vital for precise temperature control. 4. Compact design. High area-to-volume ratio makes it smaller. Favourable for installation in space-constrained areas like ships. 5. Good fluid distribution. Falling film on pillow plates ensures uniformity. Prevents hot spots and ensures stable heat transfer.

Falling Film Chiller Evaporator Application

1. Food and Beverage Industry: Ideal for chilling liquids like juices and beers. Maintains quality and freshness. Pillow plates ensure efficient cooling.

2. Pharmaceutical Sector: Required for precise temperature control. Used in drug manufacturing and storage. Falling film evaporator provides reliable cooling.

3. Air Conditioning Systems: Enables effective heat transfer. Cools air in buildings. Compact pillow plate design suits various installation spaces.

4. Chemical Processing: Handles heat exchange in chemical reactions. Suitable for corrosive substances. Robust construction of evaporator withstands harsh conditions.

5. Marine Applications: Installed on ships. Deals with cooling needs in limited space. Pillow plate evaporator operates reliably in marine environment.
